Leistritz Pumpen GmbH

Screw pumps

Leistritz Pumpen GmbH with its headquarters in Nuremberg/Germany has been producing screw pumps since 1924. These are positive displacement pumps designed to pump liquids of various viscosities. They are used in the oil and gas industries, in shipbuilding and in the chemical and energy sectors. Latest technology in combination with strictly controlled quality is the basis for the globally recognized Leistritz product efficiency and reliability. With the widest range of screw pumps Leistritz serves all kind of markets and applications. The company holds subsidiaries in the US (Leistritz Advanced Technologies Corp.), in China (Leistritz Machinery (Taicang) Co. Ltd.) as well as in Singapore (Leistritz SEA Pte Ltd).

These days, the pumps and systems which are still manufactured in Nuremberg are sold in over 60 countries around the world. The most significant developments include direct-drive lubricating oil pumps, hermetically sealed pumps and multiphase pumps for crude oil exploitation.

Leistritz pump portfolio

L2 (for slightly abrasive and corrosive, high or low viscous fluids with poor or good lubricity)
Capacity max.: 900 m3/h / 3,960 GPM
Differential pressure max.: 16 bar / 232 psi
Viscosity max.: 100,000 cSt
Pumping temperature max.: 280°C / 536°F

L3 (for non-abrasive or slightly abrasive and corrosive, high or low viscous fluids with poor or good lubricity)
Capacity max.: 700 m3/h / 3,100 GPM
Differential pressure max.: 280 bar / 4,060 psi
Viscosity max.: 15,000 cSt
Pumping temperature max.: 280°C / 536°F

L4 (abrasive/non-abrasive, corrosive/non-corrosive, lubricating/non-lubricating, high or low viscous fluids)
Capacity max.: 5,000 m³/h / 22,000 GPM
Differential pressure max.: 150 bar / 2,175 psi
Viscosity max.: 150,000 cSt
Pumping temperature max.: 350°C / 662°F

L5 (slightly abrasive and corrosive, high or low viscous fluids with poor or good lubricity)
Capacity max.: 1,700 m3/h / 7,500 GPM
Differential pressure max.: 10 bar / 145 psi
Viscosity max.: 100,000 cSt
Pumping temperature max.: 280°C / 536°F

LPS (abrasive/non-abrasive, corrosive/non-corrosive, lubricating/non-lubricating, low or high viscous single phase liquids or multiphase fluids with up to 100 % gas content (GVF))
Capacity max.: 5,000 m3/h / 22,000 GPM
Differential pressure max.: 150 bar / 2,175 psi
Viscosity max.: 150,000 cSt
Pumping temperature max.: 350°C / 662°F

Product images

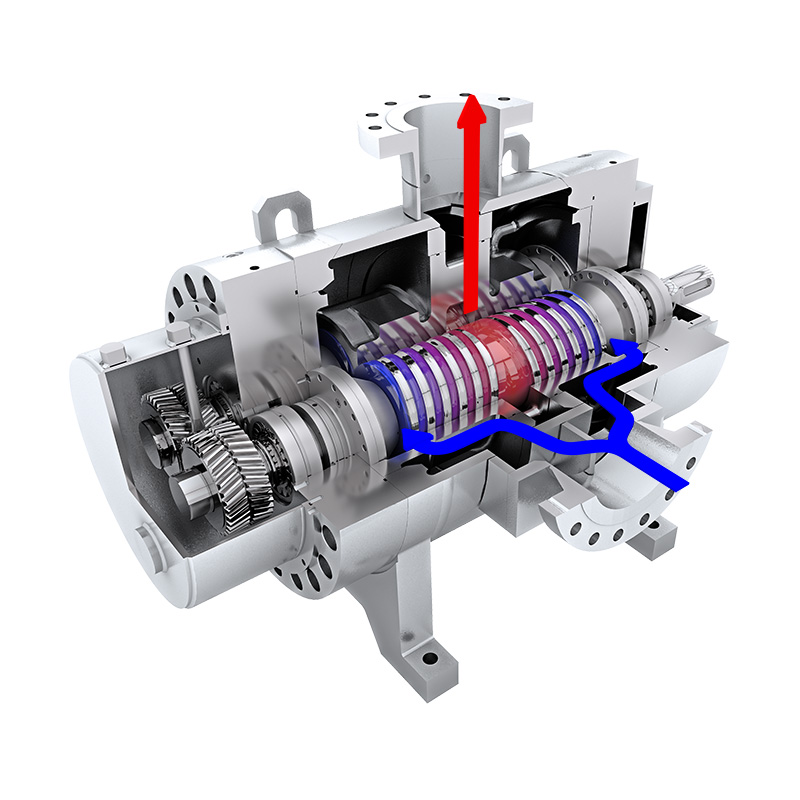

Leistritz 2
Leistritz 1

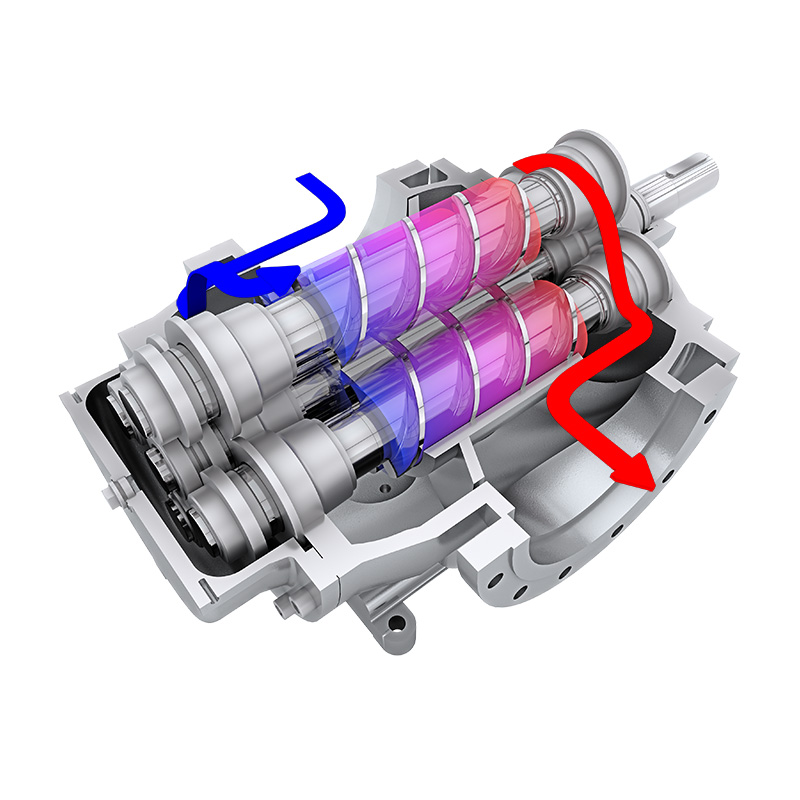

Leistritz 3

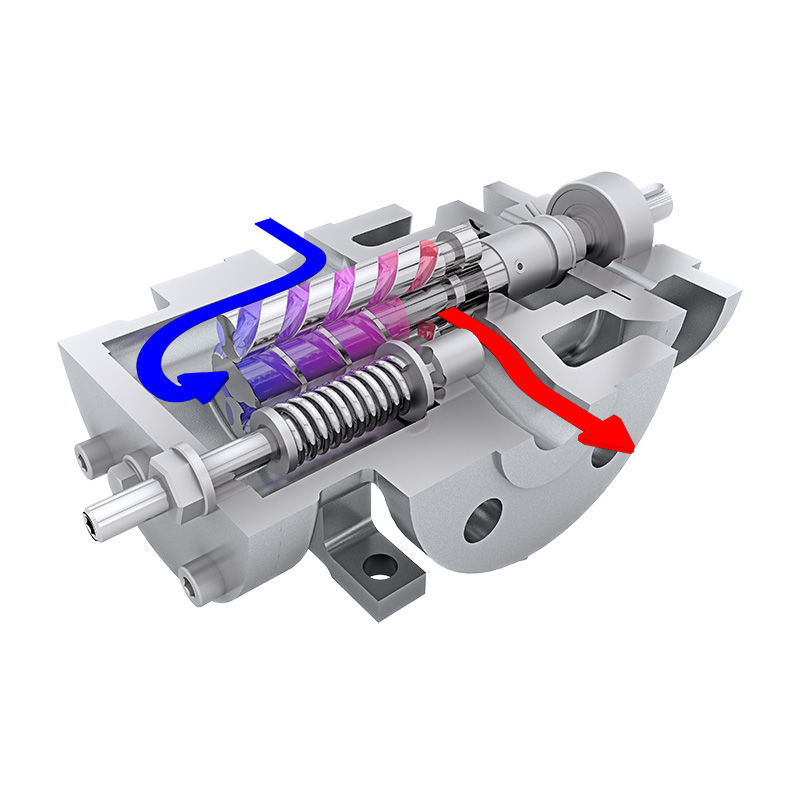

Leistritz 4
